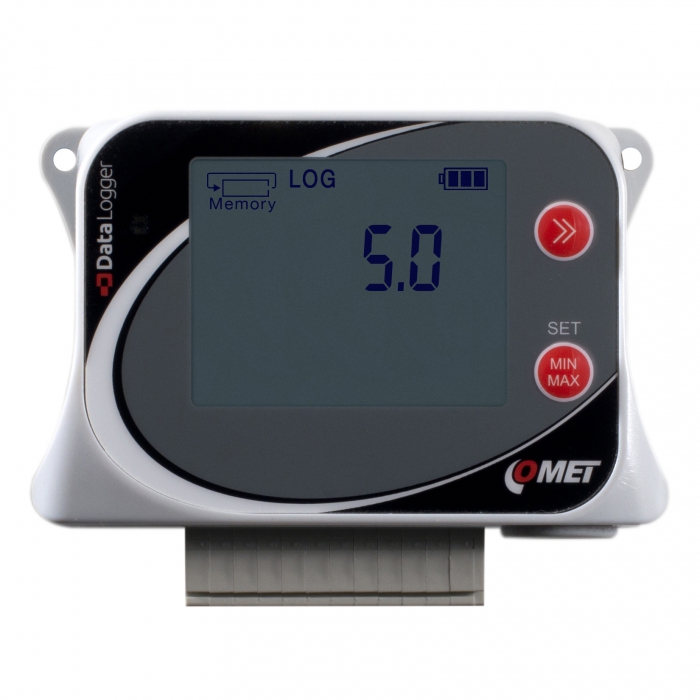

Data logger para 3 entradas de voltaje 0-10V y 1 entrada de dos estados
Data Logger diseñado para registrar 3 entradas de voltaje y 1 entrada de dos estados.
La grabación se ejecuta en una memoria electrónica no volátil. Los datos se pueden transferir a un PC vía USB-C.
En el caso de que la temperatura rebase los límites preestablecidos de alarma, se indicará con un LED, en la pantalla LCD y acusticamente.
El registrador incluye un certificado de calibración identificable con trazabilidad metrológica de etalones que se basa en los requisitos de la norma EN ISO/IEC 17025.
-
códigoU5841
-
Garantía3 años
Datos técnicos
Valor Medido
Voltaje
Dos estados binarios
VOLTAGE INPUT
Measuring range
0 to 10 V DC
Accuracy
±10 mV
Input resistance
approx. 130 kΩ
BINARY INPUT
Parameters of the voltage contact
„L“ level input voltage:< 0,8 V(*);
„H“ level input voltage:> 2 V;
Minimum voltage applicable:0 V;
Maximum voltage applicable:+30 V DC
„H“ level input voltage:> 2 V;
Minimum voltage applicable:0 V;
Maximum voltage applicable:+30 V DC
Parameters of the voltage-free contact
Contact resistance in „switched-on“ state:< 10 kOhm;
Contact resistance in the „switched-off“ state:> 2 MOhm;
Contact voltage in the „switched-off“ state:ca 3 V;
Minimum state duration necessary for latching the state:1s
Contact resistance in the „switched-off“ state:> 2 MOhm;
Contact voltage in the „switched-off“ state:ca 3 V;
Minimum state duration necessary for latching the state:1s
GENERAL TECHNICAL DATA
Operating temperature
-20 to +60 °C
Channels
3x voltage input, 1x binary input
Memory
500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval
adjustable from 1 s to 24 h
Display and alarm refresh
adjustable 1 s, 10 s, 1 min
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
Lithium battery 3.6V, size AA
Protection class
IP20
Dimensions
61 x 93 x 32 mm
Weight (including batteries)
approx. 120 g
Warranty
3 years
