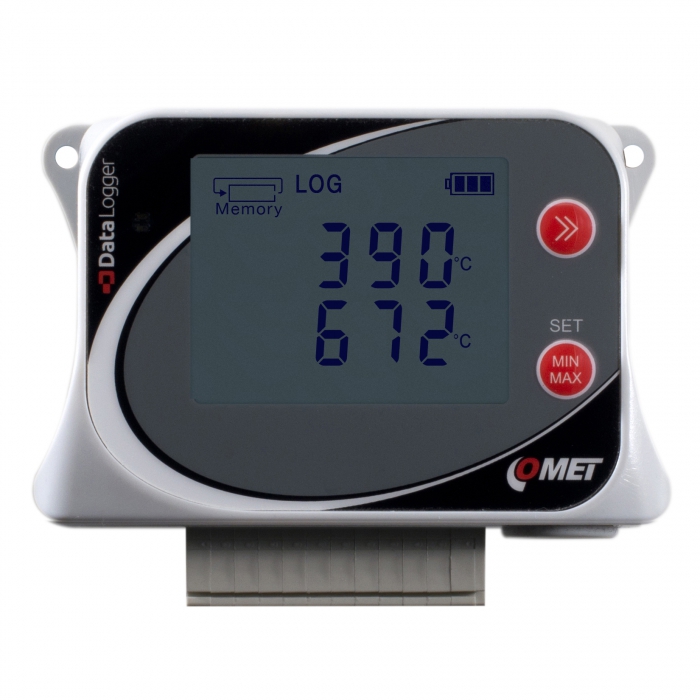

Temperature data logger for 3x thermocouples, 1x external Pt1000 probe and 1x internal sensor
El datalogger está diseñado para registrar la temperatura de 3 termopares y una sonda PT1000.
La grabación de datos se realiza en una memoria electrónica no volátil. Los datos pueden ser transferidos a un PC a través de un cable USB-C.
En caso de exceder los limites de alarma establecidos, se indicará mediante LED, LCD y acusticamente mediante un zumbador incorporado.
El dispositivo incluye un certificado de calibración identificable con identificación metrológica declarada de los etalones que se basa en los requisitos de la norma EN ISO/IEC 17025.
-
códigoU0246
-
Garantía3 años
Datos técnicos
Valor Medido
Temperatura
TEMPERATURE SENSOR - internal probe
Measuring range
-30 to +70 °C
Accuracy
±0.4°C;
Resolution
0.1 °C
Response time of temperature measurement (temperature step 20°C, air flow approximately 1m/s)
t63 < 6 minutes; t90 < 15 minutes
TEMPERATURE SENSOR - external probe Pt1000
Measuring range
-200 to +260 °C
Accuracy
±0.2°C; ±0,2 % of the measurement value in a range of +100 to +260 °C
Resolution
0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s)
according to the connected probe
TEMPERATURE SENSOR - THERMOCOUPLE TYPE B, J, K, N, S, T
Measuring range
according to the connected thermocouple (range -200 up to +1700°C)
Accuracy
±0,4°C
Resolution
0,1 °C
Response time
according to the connected thermocouple
GENERAL TECHNICAL DATA
Operating temperature
-30 to +70 °C
Channels
3x thermocouple, 1x external Pt1000, 1x internal temperature sensor
Memory
500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interva
adjustable from 1 s to 24 h
Display and alarm refresh
adjustable 1 s, 10 s, 1 min
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
Lithium battery 3.6 V, size AA
Protection class
IP20
Dimensions
61 x 93 x 53 mm
Weight (including batteries)
cca 130 g
Warranty
3 years
